Hardware

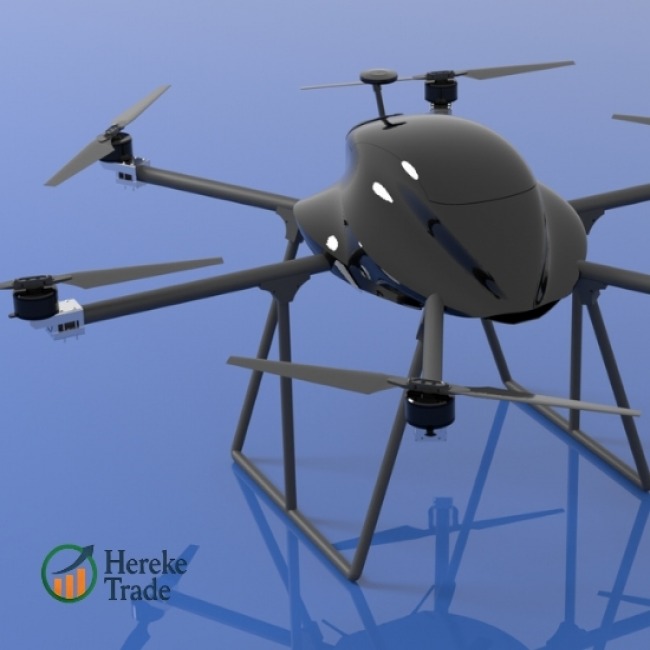

• Drone Type: Hexacopter

• Dimensions:
  Width: 127 cm (with propellers open)
  Height: 84 cm (with landing gear extended)

• Weight:
  Empty: 12 kg
  Maximum Takeoff Weight: 25 kg

• Thrust System:
  21” propellers + 6 motors

• Battery Group:
  2x 12S Li-Po batteries (12,000 mAh)

• Frame:
  Composite carbon fiber and aluminum alloy

• Landing Gear:
  Retractable carbon legs

• Cooling System:
  Passive + Active air-cooled

• Communication Systems:
  2.4 GHz + 5.8 GHz
  (Telemetry, Video Transmission, RF Communication)

Capabilities

• Maximum Speed: 90 km/h

• Climbing Speed: 8 m/s

• Maximum Flight Time: 25 minutes

• Automatic Takeoff and Landing: Available

• Flight Modes:
  Manual – Semi-Autonomous – Fully Autonomous

• Geofencing Capabilities:
  Safe zone-based automatic boundary setting

• Wind Resistance: Up to 15 m/s

• Maximum Altitude: 2000 meters AMSL

• Navigation Capabilities:
  RTK-GPS
  IMU – Compass – Barometer – Magnetometer

• Obstacle Detection & Avoidance (Optional):
  360° vision-based detection

Platform-Oriented Design

• Payload Capacity:
  Kuark V2 offers a modular body structure and supports up to 10 kg payload.

  • Compatible with various mission pods.

  • Pod change in under 10 seconds.

  • Ideal for cargo delivery, emergency logistics, agricultural spraying, visual/thermal inspections, etc.

• Pod Slots:
  Kuark V2’s design includes 60 pod slots allowing for infinite mission customization.

• Easy Pod Access:
  The elevated frame allows for convenient access to pod slots without lifting or tilting the drone.

Pod Examples

• Cargo & Delivery Pod

• Emergency & First Aid Pod

• Inspection & Camera Pod

• Spraying & Agriculture Pod

Cooling Solutions

• Internal Air Channel:
  Kuark V2’s dome structure channels airflow internally to maintain optimal electronics temperature even during long operations.

• Cooling Surfaces:
  Passive aluminum fins and outer dome design increase heat dissipation, ensuring temperature stability.

• Color Options:
  Kuark V2 comes in 7 different color options to match operational or brand preferences.

Range Data

• Kuark V2 can be managed via ground station software or a handheld controller.

• Features waypoint-based mission planning, real-time telemetry tracking, and Return-to-Home (RTH) functionality.

• Google Maps-based flight interface for ease of navigation and control.
