Detailed Product Description

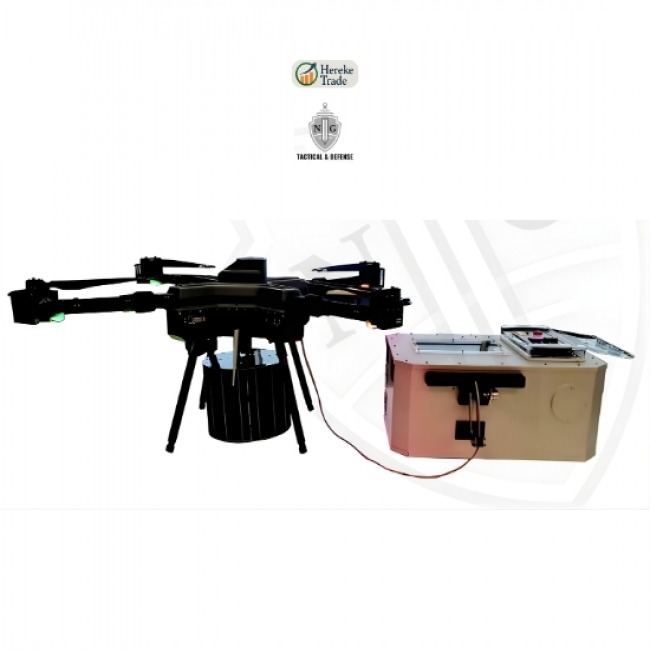

The NGD-TUAV-R02 is a military tethered unmanned aerial vehicle designed for continuous intelligence, surveillance, and communication missions. It provides persistent airborne operation with unlimited endurance through its ground power tether system.
The system can lift cameras, radios, and antenna payloads up to 150 meters above ground level. By elevating communication antennas, the system can extend radio line of sight beyond 40 kilometers.
The drone is optimized for harsh environmental conditions and supports border security, stationary operations, and small tactical units. It can be deployed from vehicles, boats, and fixed ground locations.
The system supports automated takeoff, landing, flight, and host vehicle following. Secure fiber Ethernet communication through the tether prevents jamming and hacking.
The NGD-TUAV-R02 supports EO/IR, SIGINT, DF, and communication relay payloads. Modular payload architecture allows rapid reconfiguration based on mission needs.
Wholesale distribution only.
Product Specification Table
General System
| Feature | Specification |
|---|---|
| Product Type | Military Tethered UAV |
| Model Code | NGD-TUAV-R02 |
| Endurance | 24/7 Continuous |
| Deployment Time | Under 2 Minutes |
| Control Interface | Single Screen GUI |
| Installation | Vehicle Agnostic |
| Automation | Takeoff, Flight, Landing, Following |
| Sales Type | Wholesale Only |
Flight Performance
| Feature | Specification |
|---|---|
| Max Speed | 60 km/h |
| Cruise Speed | 46 km/h |
| Operational Altitude | 100 m |
| Max Altitude | 150 m AGL |
| Payload Capacity | 10 kg |
Power and Tether System
| Feature | Specification |
|---|---|
| Tether Type | Secure Fiber Ethernet |
| Data Rate | 1 Gbps |
| Power Input | 100–240 VAC |
| Power Output | 4000 W |
| Embedded Ground Power Unit | Yes |
Dimensions and Transport
| Feature | Specification |
|---|---|
| UAV Case Size | 90 x 90 x 40 cm |
| TMS Case Size | 80 x 50 x 40 cm |
| Transport Configuration | Three Pelican Cases |
Payload Capabilities
| Feature | Specification |
|---|---|
| Payload Types | EO/IR, SIGINT, DF, Comm Relay |
| Modular Payload Support | Yes |
| Jamming Capability | Optional |
| Datalink Options | Fiber Ethernet or Secure WiFi |
