Detailed Product Description

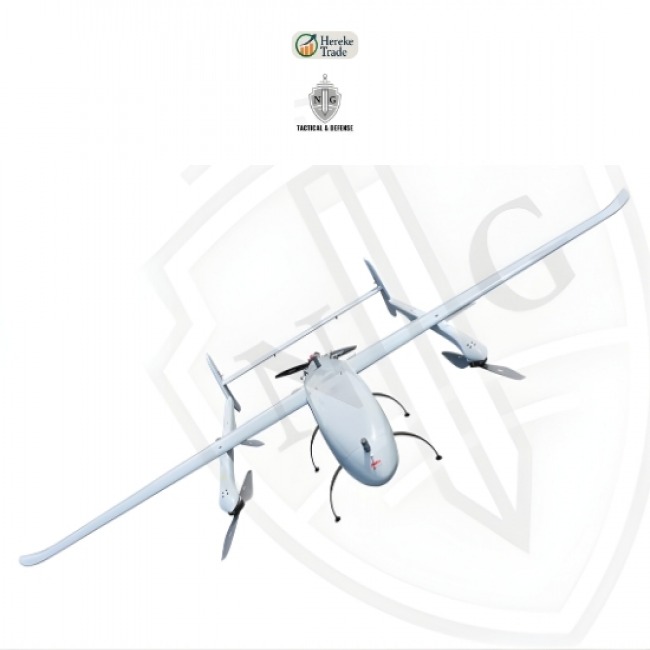

The NGD-UV100 VTOL is an industrial grade hybrid vertical takeoff and landing unmanned aerial vehicle designed for long endurance surveillance and heavy lift missions. It features a 3.9 meter wingspan and advanced aerodynamic structure.
The airframe is manufactured from Kevlar, carbon fiber, and glass fiber materials to ensure lightweight and high durability construction. The system is powered by a fuel engine using petrol, enabling up to 10 hours endurance with 5 kg payload and maximum payload capacity up to 8 kg.
The UAV is equipped with CUAV X7 Pro flight controller and dual RTK positioning module for high precision navigation. It ensures stable flight and accurate route locking without electromagnetic interference.
The integrated DIR-150 datalink operates at 1.4G frequency with transmission range up to 150 km for video and data. The system automatically switches to the channel with lowest interference for continuous communication.
The NGD-UV100 VTOL supports EO, IR, laser rangefinder, and zoom camera payloads. It is suitable for inspection, search and rescue, fire detection, day and night surveillance, and law enforcement missions.
Wholesale distribution only.
Product Specification Table
| Feature | Specification |
|---|---|
| Wingspan | 3.9 m |
| Length | 2.26 m |
| Max Takeoff Weight | 35 kg |
| Max Payload | 8 kg |
| Suggested Payload | 5 kg |
| Endurance | Up to 10 Hours |
| Max Flight Time | 5 Hours with 3 kg Payload |
| Cruise Speed | 144 km/h |
| Max Speed | 65 km/h |
| Stall Speed | 18 m/s |
| Maximum Altitude | 5000 m |
| Airframe Weight | 19 kg |
| Propulsion System | DLE 60CC EFI |
| Minimum Turning Radius | 150 m |
Navigation and Control
| Feature | Specification |
|---|---|
| Flight Controller | CUAV X7 Pro |
| GNSS | CUAV C-RTK9 GPS |
| Positioning Accuracy | Vertical ±0.5 m GPS, ±0.1 m RTK |
| Horizontal Accuracy | ±1.5 m GPS, ±0.1 m RTK |
| Navigation Systems | GPS + GLONASS + BDS |
Environmental
| Feature | Specification |
|---|---|
| Wind Resistance | Takeoff Level 5, Cruise Level 6 |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +70°C |
Datalink and Remote Controller
| Feature | Specification |
|---|---|
| Operating Frequency | 2.4G |
| Control Mode | PPM / SBUS / PWM |
| Data Interface | UART / GND / TX / RX |
| Control Distance | 30 km |
| Data Transmission Distance | 30 km |
| Channels | 16 |
| Charging Interface | Micro USB |
| Data Output | USB 2.0 |

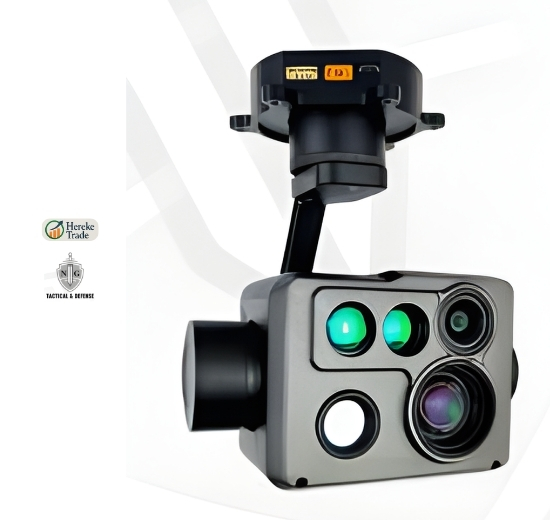

Gimbal Camera
| Feature | Specification |
|---|---|
| Stabilization | 4 Axis |
| EO Resolution | 1080p |
| Optical Zoom | 10X |
| Digital Zoom | 9X |
| Thermal Resolution | 640 x 512 |
| Laser Rangefinder | 1800 m |
