Detailed Product Description

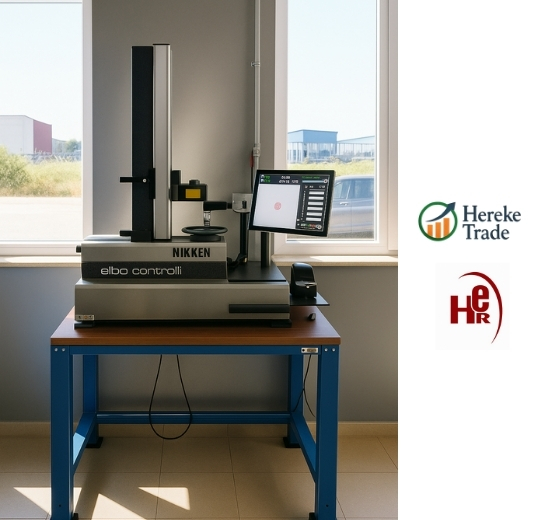

The Elbo Controlli Nikken Tool Presetter is a professional tool measuring and pre-setting station engineered to deliver fast, repeatable, and accurate tool measurements. Designed for modern CNC machining centers, this system allows operators to set tool length and diameter outside the machine, drastically reducing setup time and production interruptions.

Featuring a granite-based column for thermal stability and a precision optical camera, the presetter captures micron-level measurements. The integrated touchscreen control panel provides intuitive data management and direct communication with CNC machines or tool management systems.

Main Features:

• Non-contact optical measuring system with high-resolution camera

• Automatic recognition of tool edges and geometry

• Precision linear guideways ensuring smooth vertical and horizontal motion

• Ergonomic touchscreen interface with advanced data logging

• USB, LAN, and printer connectivity for digital tool data transfer

• Heavy-duty granite base for long-term dimensional stability

Technical Specifications (typical model range):

• Measurement range: 400–600 mm (height), 300 mm (diameter)

• Measuring accuracy: ±2 µm

• Power supply: 230V AC

• Operating system: Proprietary Elbo Controlli software (Windows-based UI)

Applications:

• CNC machining centers

• Milling and turning tool management

• Industrial manufacturing and precision engineering

• Automotive, aerospace, and mold-making industries

Benefits:

• Speeds up tool setup and reduces machine downtime

• Enhances precision and repeatability in production

• Provides a digital record for quality assurance

• Ideal for production lines requiring high tool turnover and consistency

Manufacturer: Elbo Controlli NIKKEN
Origin: Italy
